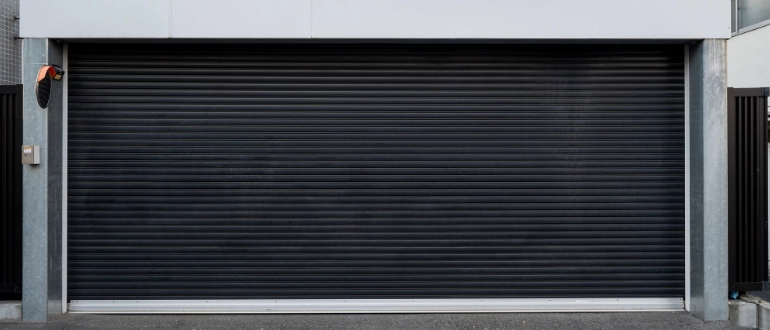

How Are Rolling Shutters Manufactured for Different Industrial Applications?

Walk past any warehouse, cold storage unit or factory loading bay and you will almost certainly see a rolling shutter. Most people never give it a second thought.

But the shutter on a pharmaceutical clean room and the one guarding a steel plant’s dispatch area are very different products, even if they look alike from a distance.

The difference starts on the factory floor, and any experienced Rolling Shutter Manufacturer in Vadodara will tell you that the real work happens long before the shutter is installed.

Here is a closer look at how rolling shutters are made and how manufacturers adapt the process for different industries.

Making a rolling shutter takes more than just bending some metal. Here’s how it goes, step by step, from raw material to a working door.

Starting With the Right Material

The first thing to decide is what the shutter will be made of. Most factories and warehouses go with galvanized steel. It's strong, it doesn't cost too much and it handles rust fairly well.

Stainless steel is used where cleanliness and rust are a big worry, like food units, chemical plants and buildings near the sea. Aluminium is lighter, so it suits large openings that are used a lot, as it puts less load on the motor and springs.

Roll Forming the Slats

When the metal coil reaches the plant, it goes into a roll forming machine. The flat strip passes through a row of rollers. Each one bends it a bit more, until it has the shape of a slat. This shape matters. A deeper, curved slat holds up better against strong wind. A flatter slat looks neater, so shops and showrooms usually go for it.

Insulated shutters are made a little differently. Each slat has two walls with polyurethane foam filled in between. The foam helps keep the temperature steady and cuts down noise. That's why cold storage units and temperature-controlled warehouses mostly use insulated shutters.

Building the Supporting Components

A shutter is more than its curtain. Guide channels, the bottom rail, the barrel or shaft, end brackets and the hood cover are all fabricated separately.

The barrel does a lot of the hard work, since the whole curtain wraps around it every time the shutter goes up. On big industrial doors, makers use a thicker pipe along with stronger springs or a geared motor. This is why it pays to pick a good Rolling Shutter Supplier. Cheap parts tend to give out first.

Fire-rated shutters need extra care. Their components are built to tested standards, and they often include fusible links or automatic closing systems.

Choosing the Operating Mechanism

Small shutters can be operated by hand with a spring balance. Larger ones need a gear and chain system or an electric motor.

Most factories want motorized shutters. They come with a remote and safety sensors, and some can even be linked to the building's main control system. High-speed doors go a step further. They run on servo motors with their own control panel and can open at more than a metre per second.

Fire-rated shutters need extra care. Their components are built to tested standards, and they often include fusible links or automatic closing systems.

Choosing the Operating Mechanism

Small shutters can be operated by hand with a spring balance. Larger ones need a gear and chain system or an electric motor.

Most factories want motorized shutters. They come with a remote and safety sensors, and some can even be linked to the building's main control system. High-speed doors go a step further. They run on servo motors with their own control panel and can open at more than a metre per second.

Fire-rated shutters need extra care. Their components are built to tested standards, and they often include fusible links or automatic closing systems.

Assembly and Testing

The slats are locked together one at a time to make the curtain. End locks go on the sides so the slats don't slide out of place.

Once it's all put together, the shutter is checked to see if it runs smoothly, sits straight and can take the weight. Good makers also open and close it thousands of times in testing, since that's what it will go through on site.

Rolling shutters look simple, but making one that lasts for years takes good work at every step. Before you buy, talk to the maker. Tell them your opening size, how often you will use the door, where it will be fitted and what safety rules you need to follow."

Asking the right questions at the start, and insisting on professional Rolling Shutter Installation, will save you a lot of maintenance trouble later.

Looking for durable rolling shutters for your facility? Shreenath Automation offers reliable rolling shutter manufacturing and installation solutions for warehouses, factories, cold storage units, and commercial spaces. Contact us today to discuss your requirements.
