A high speed door is a fast-acting industrial door built for openings that are used again and again throughout the day. It is common in factories, warehouses, cold storage units and clean rooms, where a slow door can waste energy, hold up work and let in dust or outside air.
Working with an experienced High Speed Door Manufacturer in Vadodara can help you pick the right door for your site. This blog explains what a high speed door is, how it works and where it is used.

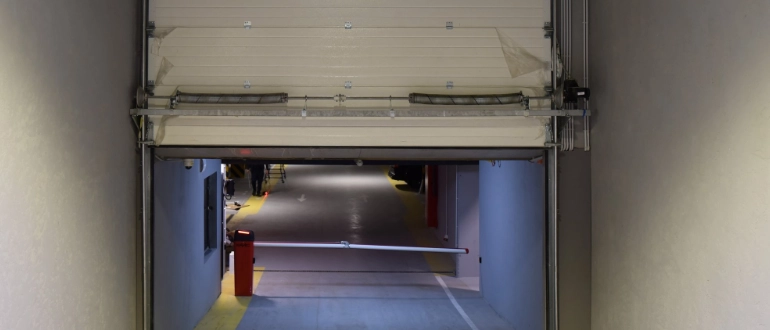

A high-speed door is a motor-driven door designed to open and close much faster than a conventional rolling shutter. A professional Rolling Shutter Manufacturer can offer different door solutions based on operational speed, opening size and industrial requirements. While a regular rolling shutter may take 20 to 30 seconds to open fully, a high-speed door can complete the same movement in just a few seconds.
The curtain is mostly made of tough, bendable PVC fabric. Some doors use aluminium slats or insulated panels instead, when the door needs to be stronger or hold the temperature better. You can also add clear see-through panels so people can spot what's on the other side."
Like a normal shutter, the curtain wraps around a drum fitted above the opening. What sets it apart is the motor. High speed doors run on a servo motor or a motor with a frequency drive. This lets the door pick up speed fast, ease off as it gets close to the top or bottom, and come to a soft stop.
A control panel handles the door. You can open it with a push button, a pull cord, a remote, a motion sensor, a radar sensor or a floor loop. After a set time, it shuts by itself.
Most models come with safety features as standard. Photo-cells or light curtains on both sides will stop the door if someone or something is in the way. Many PVC doors also have a soft bottom edge and can fix themselves. If the curtain gets pushed out of its track, it slips back in the next time the door runs.
Industrial High Speed Doors are used in many types of facilities where doors open often and the inside conditions need to be controlled.
The door left open in cold rooms allows warm air to enter and increases cooling equipment usage. High speed doors reduce opening time and minimize temperature fluctuation inside. They also contribute to compliance with hygiene requirements of food plants.
Clean rooms need strict control of dust, air pressure and contamination. High speed doors with good seals reduce air exchange between zones. They can also be linked with interlock systems so that two doors in a corridor do not open at the same time.
In a warehouse, forklifts and trolleys pass through the doors all day long. A fast door means less waiting around. There’s also less chance of a vehicle hitting a door that’s only half open. On top of that, it keeps dust, birds and insects out.
You’ll find these doors between production areas, paint shops and assembly lines. They stop fumes, noise and dust from spreading from one area into the next.
Some plants have to keep a close watch on temperature, humidity or contamination. High speed doors help protect both the products and the work being done there. In electronics units, for example, they help keep dust off delicate parts.
A high-speed door is more than just a faster rolling shutter. It can help reduce air exchange, support workplace safety and keep operations moving efficiently in busy industrial facilities. For sites where doors open frequently throughout the day, choosing a reputable High Speed Door Supplier can help you find a solution that suits your operational needs.
Need a high-speed door for your plant, warehouse or cold storage facility? Shreenath Automation offers high-speed door solutions tailored to your opening dimensions and operational requirements. Contact us today to discuss your needs, arrange a site visit and request a free quote.
